What are the Advantages of PC Indented Steel Wire?

As a professional PC steel wire supplier, the indented steel wire we export is also welcomed by our customers, and the advantages of the indented steel wire are mainly reflected in its special surface structure design and mechanical properties, which make it significantly competitive in prestressed concrete projects. There are the advantages of the indented steel wire as below:

1. Greatly Improved the Bonding Performance of Concrete

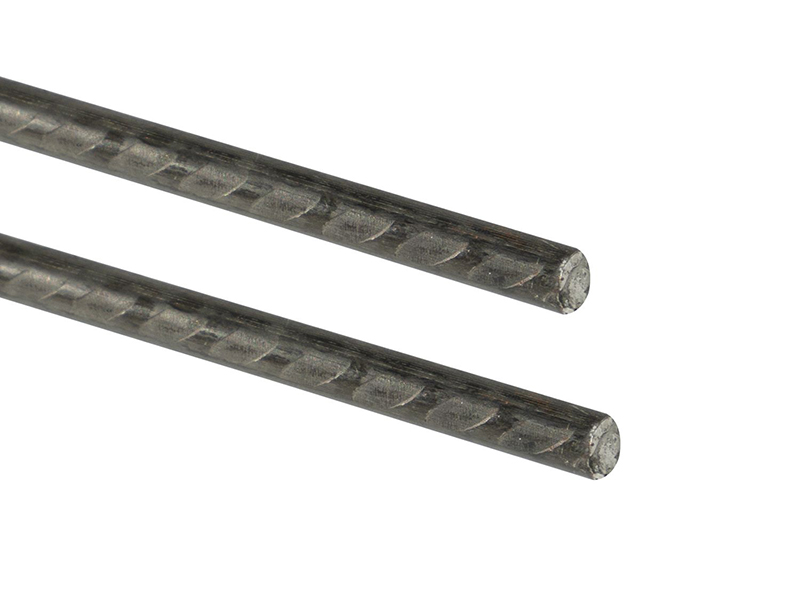

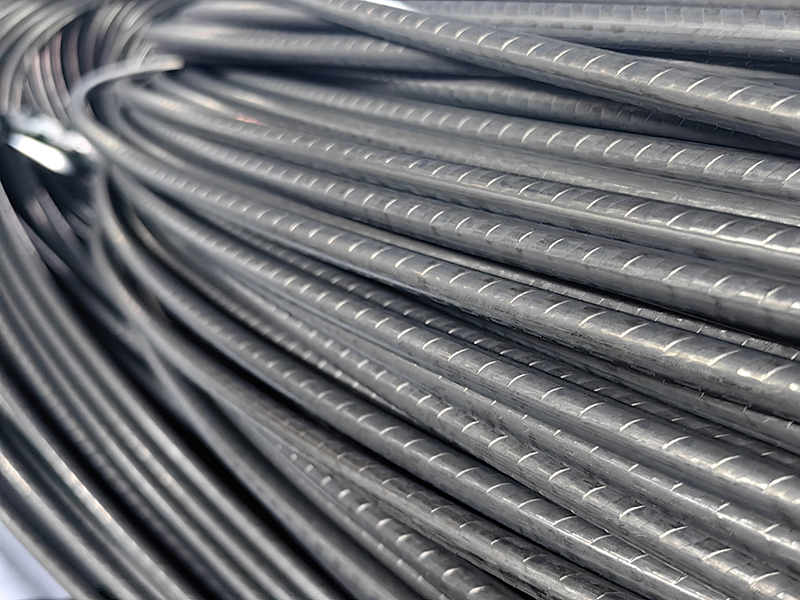

-- Increase the contact area to prevent slippage: In the production of indented PC steel wire, we use mechanical indentation to form periodically distributed elliptical indentations or convex patterns, so that the contact area between the steel wire and the concrete is increased, resulting in a stronger mechanical bite force. Therefore, compared with smooth steel wire, its bonding strength can be increased by more than 30%, which can effectively prevent the slippage of prestressed tendons during tensioning or use, and make them tightly bonded.

-- It ‌can be directly embedded in concrete‌: The high bonding properties of indented PC steel wire make it the preferred material for large-span beams, railway sleepers, high-speed track plates and other scenes with strict anti-slip requirements. It is especially suitable for structures directly embedded in concrete during pre-tensioning construction, making the construction process more convenient.

2. Higher Material Utilization Rate

-- High strength, reduced material and reduced weight: The tensile strength of the indented PC steel wire we produce reaches 1470–1860MPa (commonly used 1770MPa level). Under the same bearing capacity, it saves about 30% of steel compared with ordinary steel bars, which can significantly reduce the deadweight of concrete structures, thereby optimizing the overall cost. In comparison, the material utilization rate is higher.

-- Low relaxation characteristics ensure long-term stability: After low-temperature tempering of the indented PC steel wire, we control the stress relaxation rate to ≤2.5% (low relaxation level), thereby achieving the effect of small prestress loss under long-term load and higher structural durability.

3. More Convenient Construction

-- Simplified construction process : In the pre-tensioning construction, no anchor is required, and the indented PC steel wire can be directly buried in the concrete for pouring, which can effectively shorten the construction period; in the post-tensioning construction, the indented steel wire can be compatible with the grouting system to form a reliable bonded structure.

-- No welding and process saving: The length of a single indented PC steel wire can reach kilometers, avoiding on-site joint welding, which is particularly suitable for automated construction scenarios such as continuous production lines for sleepers.

4. Wide Application in Special Scenarios

-- Adapt to harsh environments: Our indented PC steel wire can be treated with galvanizing (20–30μm coating) or epoxy coating to resist salt spray corrosion, and can be used in highly corrosive environments such as cross-sea bridges and coastal buildings.

-- Excellent fatigue resistance: The indented structure disperses stress concentration, combined with high elongation (≥4%) and excellent fatigue resistance, can be widely used in high-speed rail sleepers and industrial plants with frequent vibrations.

‌Summary‌

The advantages of our indented PC steel wires are that they fundamentally solve the key pain points of prestressed concrete structures through surface notching to enhance bonding, high strength and low relaxation to save materials, and ease of construction, thus gaining the trust of more customers. With the increasing demand for lightweight green buildings, the application potential of indented PC steel wires in prefabricated buildings, new energy infrastructure and other fields will be further released.

If you have any needs for purchasing indented PC steel wires, please leave us a message or call us, and we will arrange professionals to connect with you. Welcome to inquire!
