Dec. 30, 2025
In the field of prestressed engineering, the tensile strength of PC steel strand is the core indicator for measuring their mechanical properties, directly determining the load-bearing capacity and safety stability of the engineering structure. So how do you ensure the tensile strength grade of the PC steel strands matches the project requirements? As a professional supplier, we offer the following suggestions for your reference.

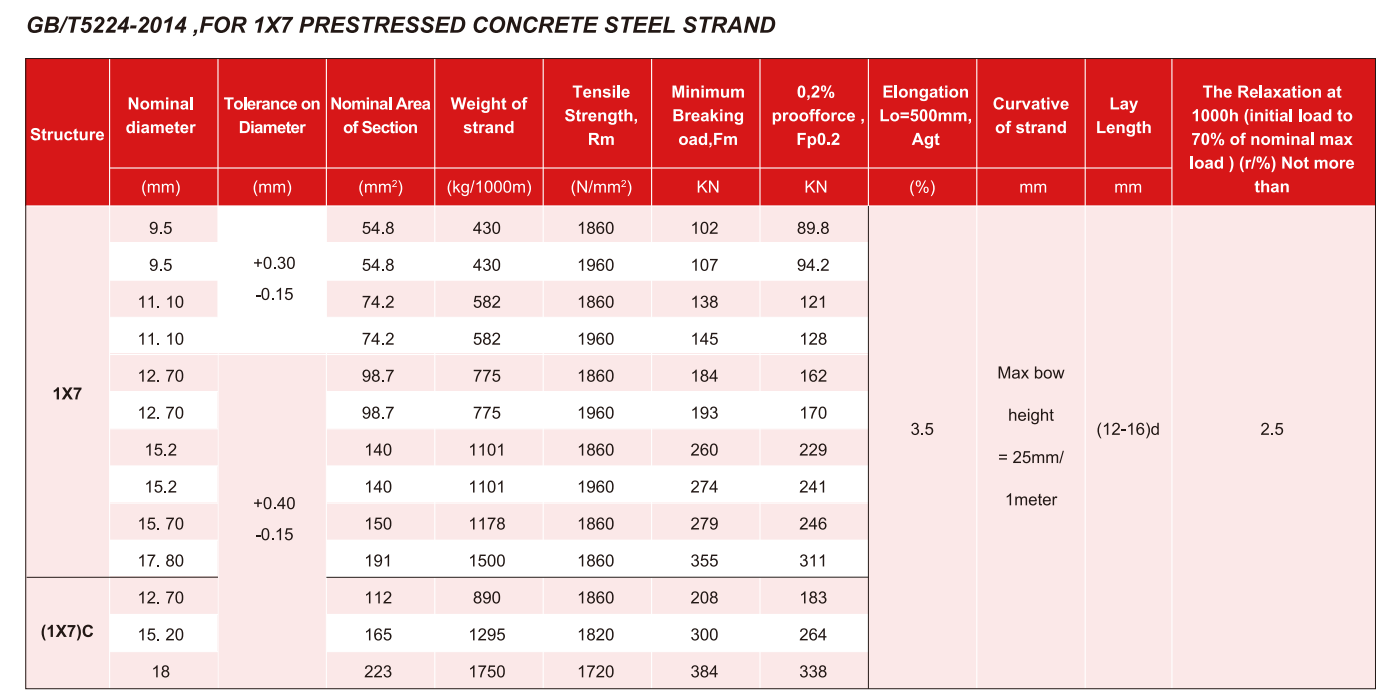

Currently, the mainstream tensile strength grades of prestressed steel strands in the domestic market can be divided into three main categories: 1860MPa, 1960MPa, and 2000MPa. The 1860MPa grade, with its high cost-effectiveness and mature technology, is widely used in conventional projects such as civil buildings and municipal bridges. Higher strength grades of 1960MPa and above are suitable for scenarios with stringent load-bearing requirements, such as long-span bridges, heavy-load structures, and geotechnical anchorage.
To select the appropriate PC steel strand strength grade, project selection should follow the principle of "matching according to needs and economic efficiency," which can be approached from three aspects.
I. Define Project Load Requirements
For structures requiring long-term heavy loads, such as long-span continuous beam bridges and transfer floors of high-rise buildings, prioritize strength grades of 1960MPa and above to ensure structural deformation resistance. For low-load scenarios such as ordinary floor slabs and small to medium-sized bridges, a strength grade of 1860MPa is sufficient. As a source factory, we can accurately recommend the appropriate strength grade based on your project load parameters, avoiding cost waste.
II. Refer to Standards and Specifications
When selecting materials, strictly adhere to national standards such as "Steel Strands for Prestressed Concrete" (GB/T 5224), and match the strength grade specified in the engineering design documents. Avoid using high-strength materials for low-strength applications, which leads to cost waste, or using low-strength materials for high-strength applications, which creates safety hazards.
All our products have passed national standards and international certifications such as ASTM. Each batch of products comes with a complete test report, ensuring traceable quality compliance.
III. Considering the Actual Environment
In highly corrosive coastal areas or underground projects, in addition to focusing on tensile strength, anti-corrosion processes such as galvanizing and plastic coating are necessary to prevent strength reduction due to steel strand corrosion.
For different corrosive environments, we can customize anti-corrosion solutions such as hot-dip galvanizing and epoxy coating, forming a double guarantee with high-strength PC steel strands and extending the service life of the project.
The production process at the source factory directly affects the stability of the tensile strength of the PC steel strands. High-quality steel strands, through precise raw material ratios, stable wire drawing processes, and strict tensioning and aging treatment, ensure that the strength deviation of products within the same batch is controlled within a very small range, providing reliable assurance for project selection.
Our factory has 20 years of experience in PC steel strand production, equipped with fully automated production lines and a rigorous quality inspection system. We support customization and stable supply, with controllable delivery times and worry-free after-sales service, making us your reliable partner for project procurement!
