Prestressed Material
Prestressed Anchorage system includes tension end anchorage and fixed end anchorage, and the entire system could meets the following standards: anchorage, grip, and coupler for prestressing tendons GB/T 14370-2015; prestressing strand anchorage,grip and coupler for highway bridge JT/T329-2010; and design regulations for reinforced concrete and prestressed concrete bridges and culverts in highways JTG D 62-2004; Technical Specifications for Construction of Highway Bridges and Culverts JTG/T 3650-2020 and JTJ 041-2000; Technical Specification for Application of anchorage,grip and coupler for prestressing tendons JGJ 85-2010;Anchorage ,grip and coupler for prestressing tendons in railway construction TB/T3193-2008;Code for design on reinforced and prestressed concrete structure of railway bridge and culvert TB 10002.3-1999; Code for construction on bridge & culvert of railway TB 10203-2002.
Also our products could comply with international standards and recommendations ASTM ,AASHTO,FIP,EOTA,BS,etc
ADVANTAGES
Our prestressed anchorage system has the following advantages
-Complete specifications allow users to achieve one-stop procurement
-Provide supporting equipment for prestressed construction and provide solutions for prestressed construction systems
-The anchor is inspected before leaving the factory, and the inspection equipment is advanced and complete
USE

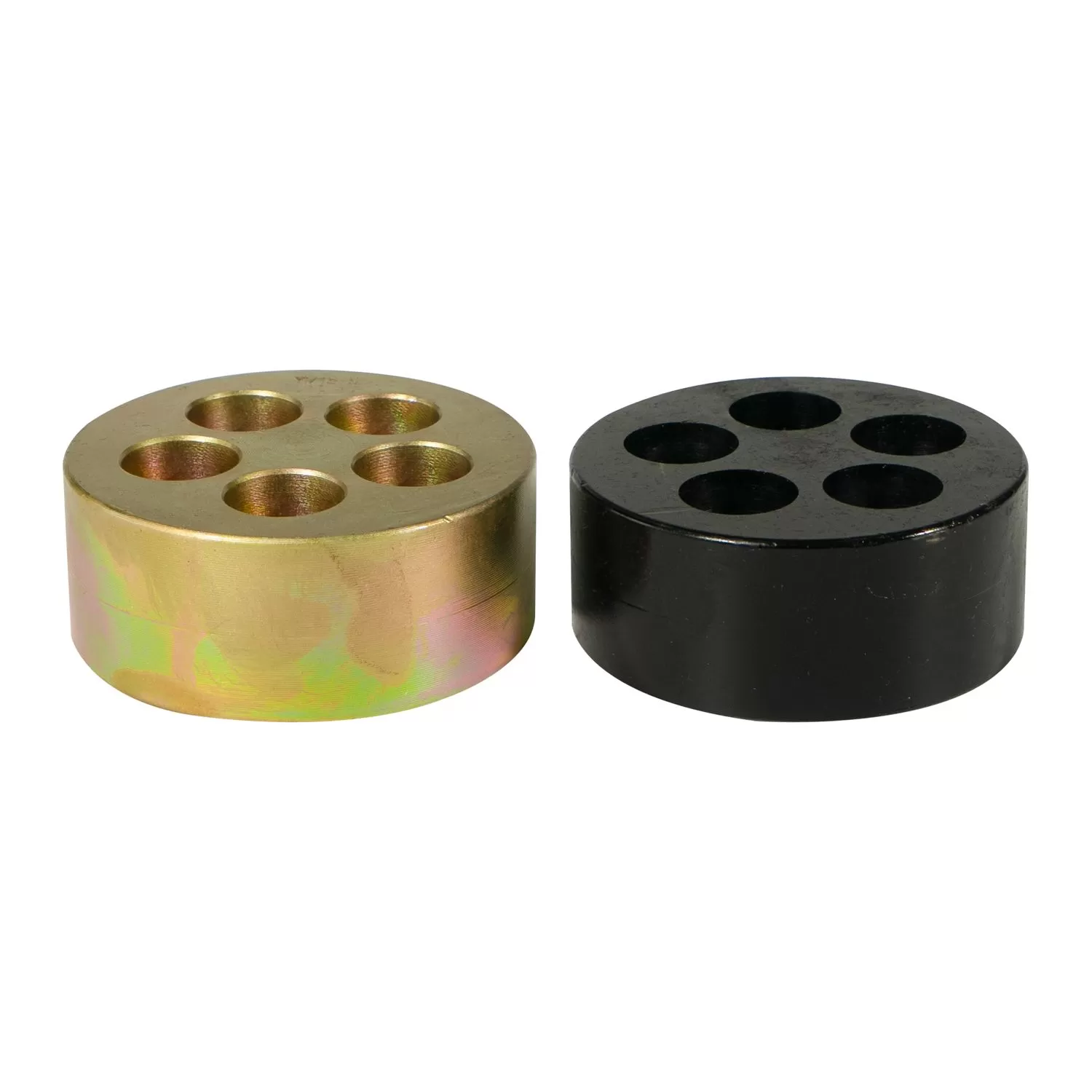

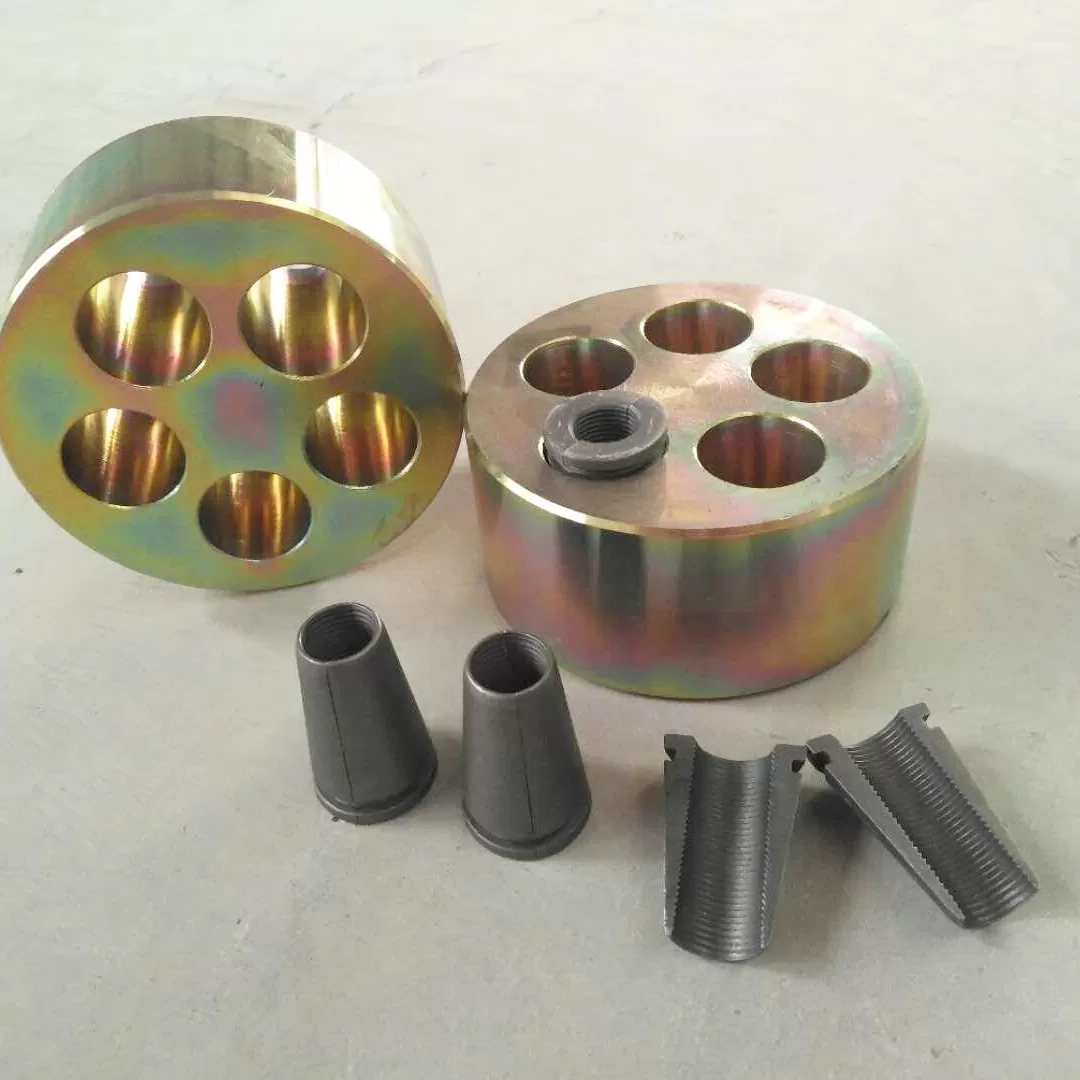

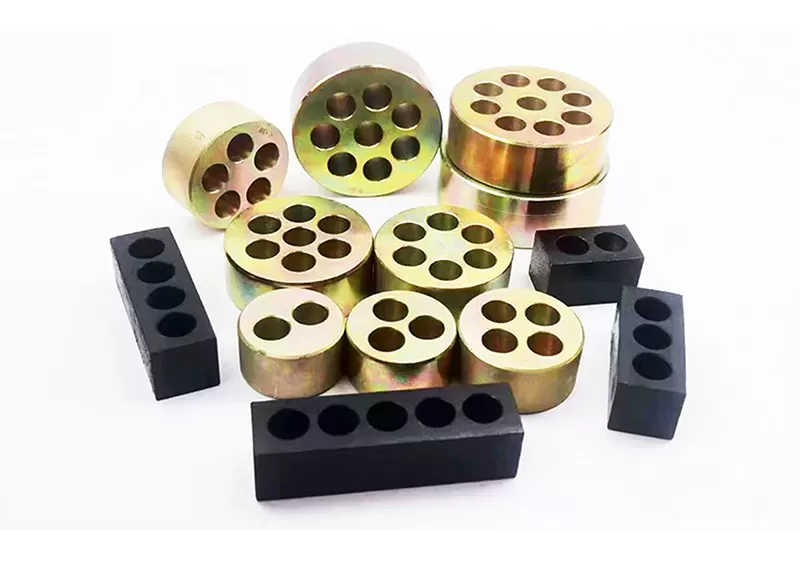

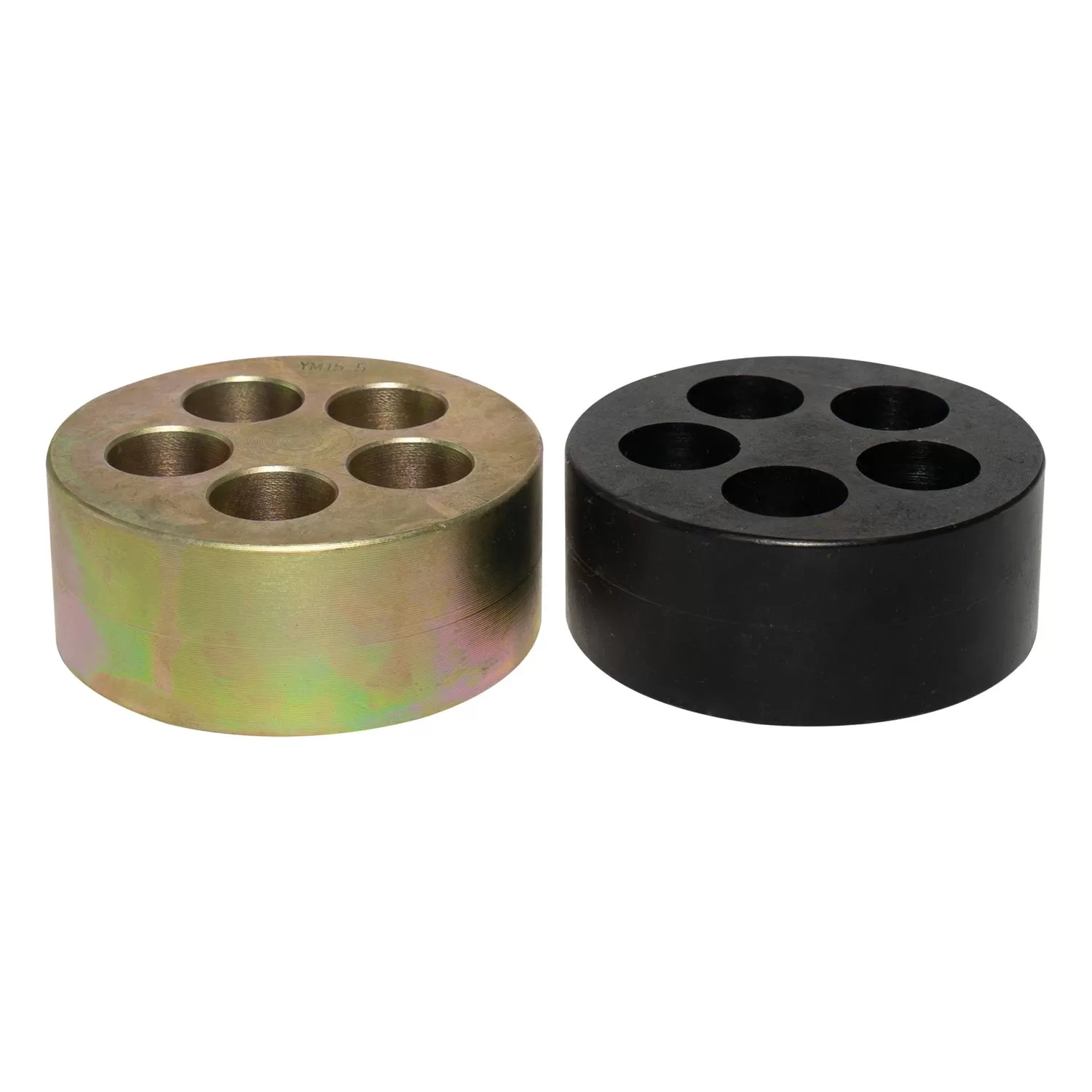

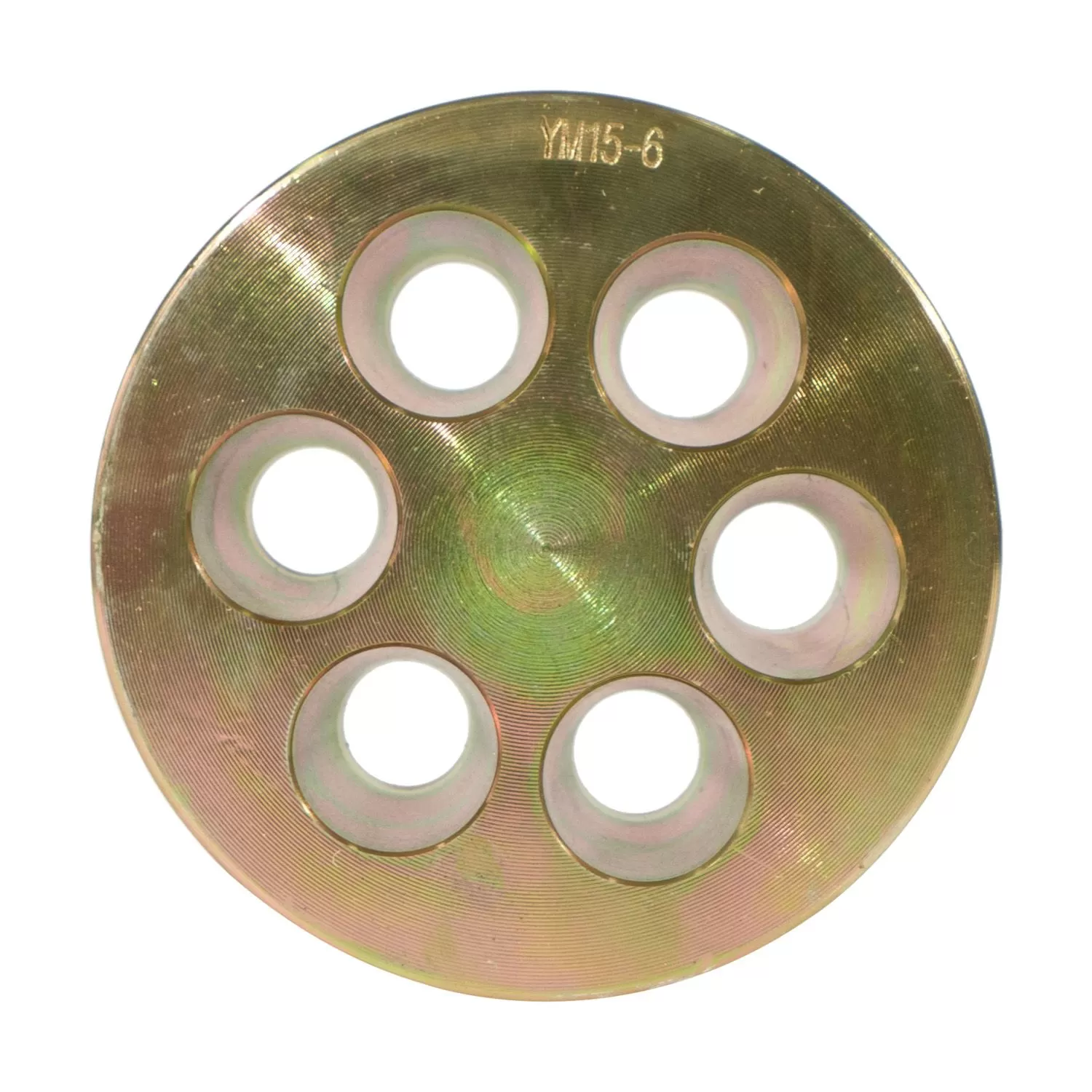

Tensioning end anchor,
Anchorage, also known as pre-stressed anchorage, is a permanent anchoring device buried in pre-stressed concrete, whose function is to maintain the tensile force of the pre-stressed steel strand and transmit the force to the interior of the concrete. The conventional configuration of the tensioning end anchor includes one working anchor head, anchor bearing plate, spiral reinforcement, and a supporting number of working clips, meeting the standards of GB/T 14370-2015 "anchorage, grip, and coupler for prestressing tendons" and JT/T 329-2010 "prestressing strand anchorage,grip and coupler for highway bridge ".
Fixed end compression anchor,
The fixed end tracing tool is suitable for working conditions where the space at the end of the component is limited and inconvenient to operate. It is embedded in the concrete, and after the concrete solidifies to the design strength, tensioning construction is carried out at the other end.
The extrusion type laying tool is a device that installs a steel wire lining ring and an extrusion sleeve at the end of the steel strand. After the extrusion sleeve is squeezed through the mold hole using an extruder, the extrusion sleeve undergoes plastic deformation and tightly grips the steel strand to form a reliable fixing head. The tension of the steel strand is transmitted to the component through the fixed end tracing plate through the extrusion sleeve.
PACKAGE
we support customized packaging ways.
