Prestressed Material
HDPE Coated PC Wire - steel wire for greenhouse framework
High strength prestressed HDPE coated steel wire with a diameter of 7mm-10mm is used as the framework for the greenhouse.Steel wire is in accordance with GB/T5223-2014 or other international standard for prestressed steel wire, the HDPE coating process comply with our enterprise standard or any other standard clients require. Steel wire tensile strength is not less than 1470Mpa, the thickness of HDPE coating is no less than 1mm, epoxy agent is added in HDPE to form a high wear-resistant anti-corrosion coating, so that the steel wire will not be corroded in a humid environment and will be used permanently.
ADVANTAGES
When steel pipe piles are used for industrial foundation, a small amount of concrete shall be used. It will not damage the soil structure. In order to increase the overall stiffness, a small amount of galvanized steel pipe is used at the tensioning end.

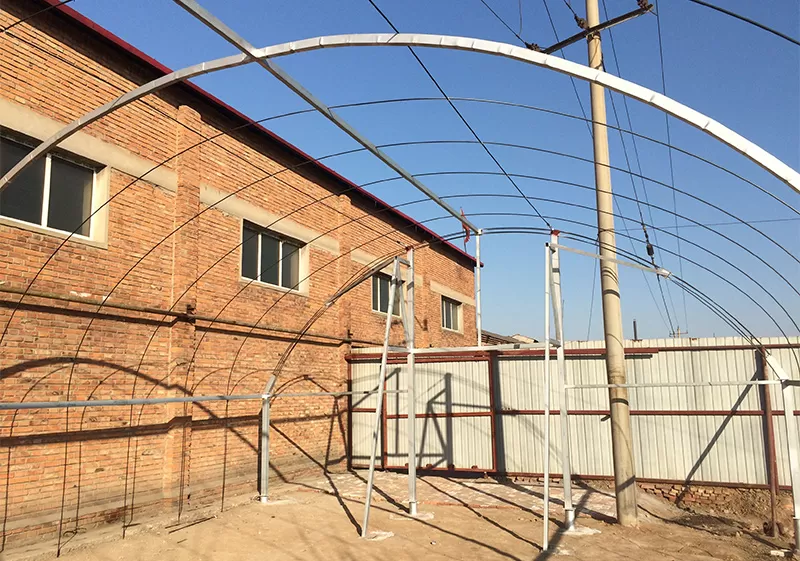

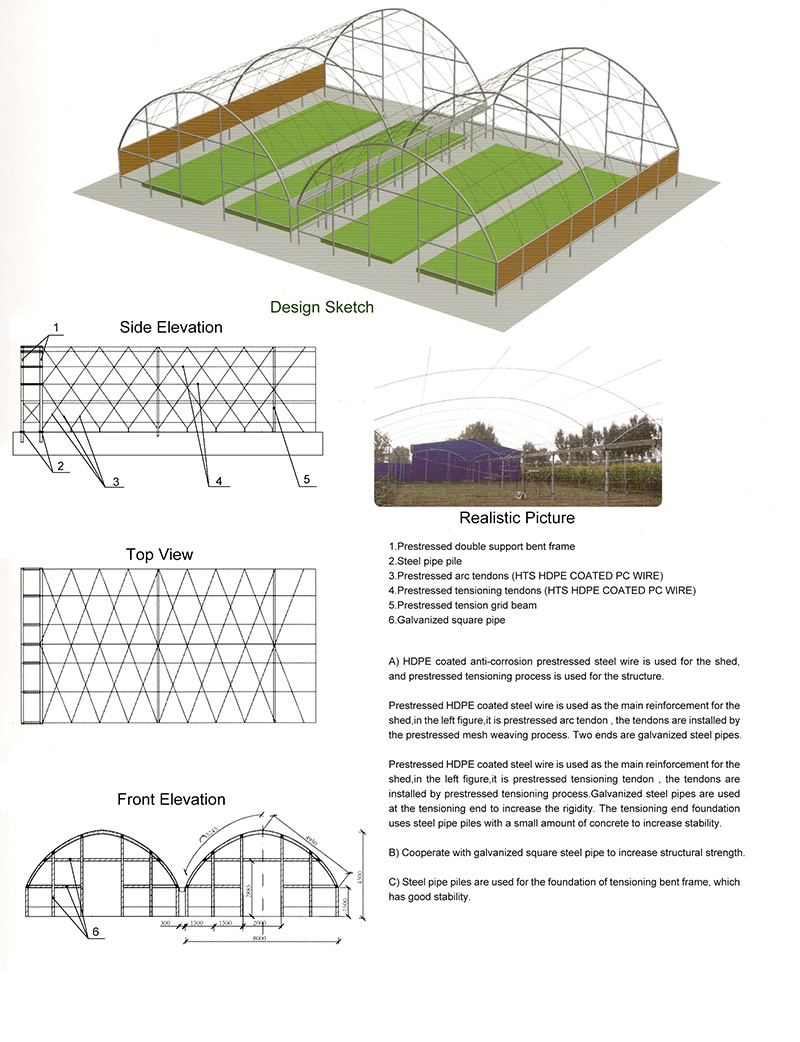

Prestressed tensioning technology is adopted for the overall structure of the greenhouse. The span of a single shed can be 8-16m, and the length can reach 200m. The top of the shed is arc-shaped, with a height of 3-6m and a shoulder height of 1.5-2m. The single shed can reach 3000 square meters, without any support in the middle of the shed, which is convenient for mechanical farming and can realize the combination of drip irrigation and sprinkler irrigation. The water volume can be controlled automatically.
After the removal of the prestressed shed, the steel wire can be restored to a straight state, can be reused for many times, has high recycling value, and the service life is more than 15 years.
The shed is made of new type high tensile prestressed steel wire, easy to install, less galvanized steel pipes are used, and it is solid as a whole. The wind load resistance and snow load resistance of the shed are higher than ordinary greenhouse with galvanized steel pipe as framework , with the same span and height, and the cost is lower than the cost of ordinary steel pipe greenhouses.
In the construction of agricultural greenhouse framework , the application of HDPE coated high-strength prestressed steel wire materials and prestressed tensioning technology has greatly improved the strength of the greenhouse. It makes the construction of super tall, super long span and super long greenhouses easier and faster, improves the stability, wind load resistance, snow load resistance , and reduces the maintenance cost.
The amount of steel used in the greenhouse is less, which greatly reduces the construction cost.
It will never corrode in wet environment.
USE
Planting: vegetable greenhouses, spring and autumn greenhouses, greenhouse ecological greenhouses
Breeding industry.
SPECIFICATIONS
- HDPE Coated PC Wire - steel wire for greenhouse framework
7.0mm, 8.0mm, 9.0mm, 10.0mm
-Technical parameters
| Steel Wire Before HDPE Coated | Steel Wire After HDPE Coated | Tensile StrengthMpa | Mass Per Meterg/m | ||
| Diametermm | Diameter Tolerancemm | Diametermm | Diameter Tolerancemm | ||
| 7.0 | ±0.05 | 9.0 | ±0.05 | 15701670 | 325.88 |
| 8.0 | ±0.06 | 10.0 | ±0.06 | 420.87 | |
| 9.0 | ±0.06 | 11.0 | ±0.06 | 528.84 | |
| 10.0 | ±0.06 | 12.0 | ±0.06 | 648.83 | |
