Prestressed Material

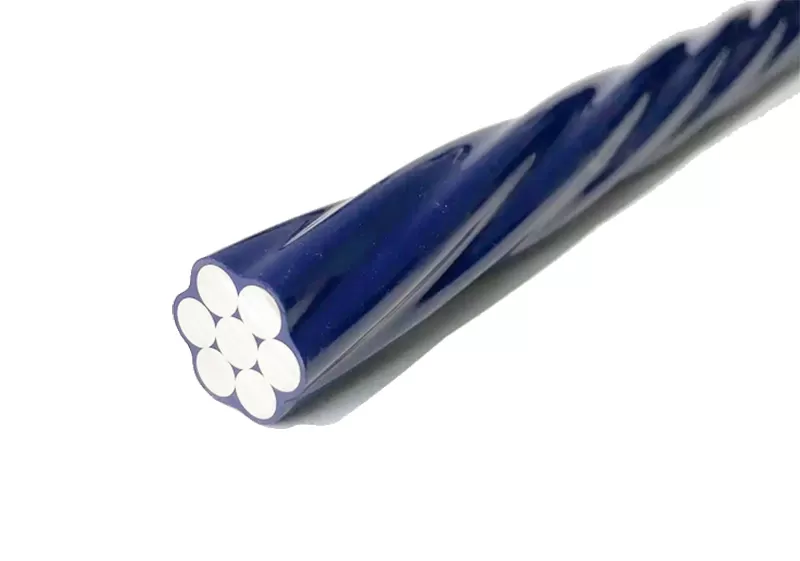

FILLED EPOXY-COATED 1X7 PC STRAND

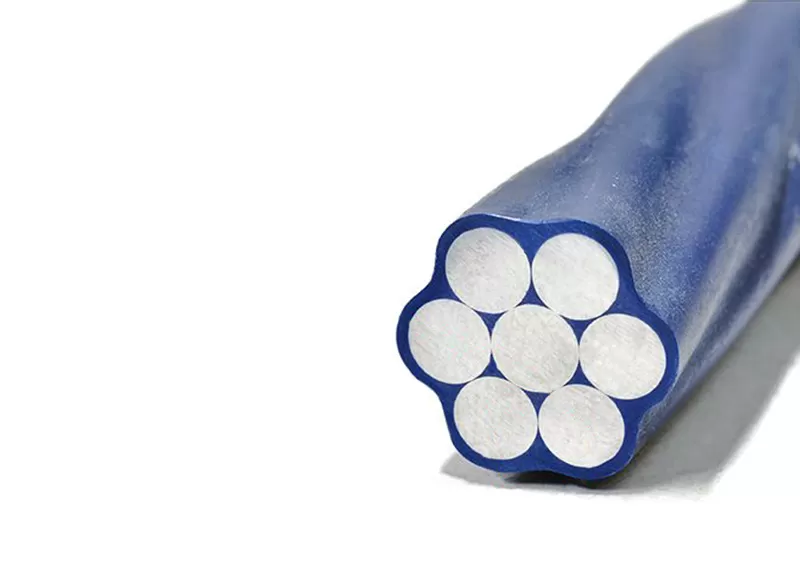

Filled epoxy resin steel strand is to spray epoxy powder on the surface of the whole steel strand through electrostatic spraying during the process of steel strand splicing, and also fill the gap of each steel wire, so that the epoxy resin powder can be completely filled inside and outside the steel strand, so that achieve perfect anti-corrosion effect. The epoxy resin coating has excellent corrosion resistance, can permanently bond with the bare steel strand, and has sufficient toughness to make the layer not peel off or crack when the steel strand stretch or bend within a certain angle, and also be able to resist physical wear and chemical erosion. The main application fields are: stay cable, geotechnical anchorage, external cable, pipe pile, marine structure and dam reinforcement engineering, especially the external cable assembled in sections.
ADVANTAGES
1. Strong anti-corrosion ability, which can prolong the service life of the structure much well.
2. Our filled epoxy coated steel strand can make construction more convenient and simple, this can shorten the construction time.
3. Maintenance is convenient, only removing and replacing the steel strand which need to be replaced can solve the problem, this can save maintenance cost than normal strands.
-What makes this product different to other factory's FILLED EPOXY-COATED 1X7 PC STRAND ?
1. The bare steel strand is produced within 3 days to avoid rust and dust bonding on the surface. The process is strictly controlled during production and no oil stain;
2. The secondary spraying film-forming technology is adopted to increase the coating thickness and improve the coating uniformity.
USE
-Where can our FILLED EPOXY-COATED 1X7 PC STRAND be use?
Arch bridge cable system
Cable-stayed Bridge system
Suspension Bridge Cable system
Prestressed structure not directly contacting with concrete mortar
Buildings for lifting and fixing tension elements, for instance, construction of agricultural greenhouse; Photovoltaic Mounting Suspension System.
-Some common attentions in using of our FILLED EPOXY-COATED 1X7 PC STRAND.

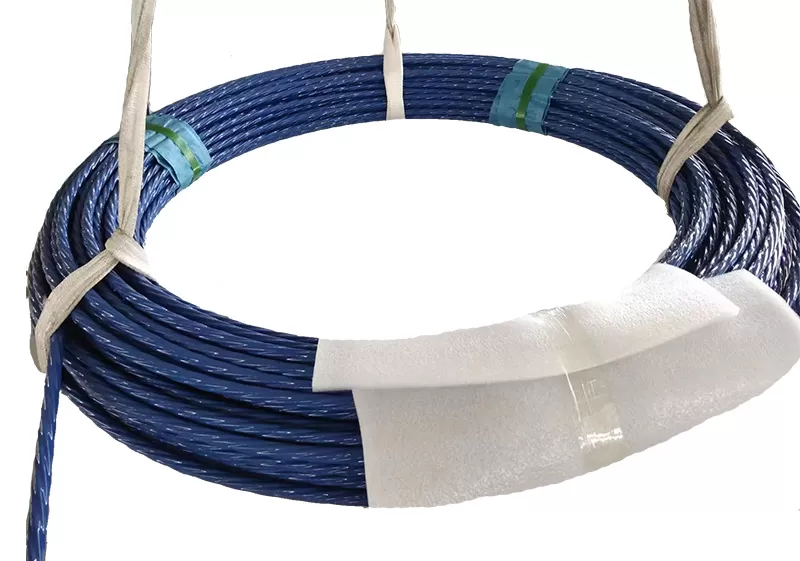

1. This product should be hoisted individually to prevent damage and collision.
2. Three lifting belts shall be used for simultaneous lifting at three points.
3. Skin damage caused in the process of loading and unloading contacting directly with wire rope or forklift fork may lead to product scrapping.
4. Nylon rope or nylon belt can be used for hoisting.
After the epoxy coated steel strand enters the construction site, it shall select a flat land, use a three claw sling, a special sling for hoisting the strand, and a three-point hoisting. It is strictly prohibited to use steel wire rope for direct hoisting to avoid damage to the surface of the epoxy coated steel strand.
Place the epoxy coated steel strand on the special paying off rack with rotating device, and pay off slowly and evenly to avoid bumping the strand.
SPECIFICATIONS
Normal specification is coating the whole steel strand with epoxy resin, with smooth surface, Main specifications available currently
Item | U.S.A Standard | International Standard | China Standard |
Standard | ASTMA882/A882M-20a | ISO14655-1999 | GB/T21073-2007 |
Epoxy Coating thickness | 0.38-1.14mm | 0.4-1.15mm | 0.4-1.14mm |
Tensile Strength | ≥1860MPa | ≥1860MPa | ≥1860MPa |
Yield Strength | ≥1647MPa | ≥1647MPa | ≥1647MPa |
Relaxation | ≤6.5% | ≤6.5% | ≤6.5% |
Elongation | ≥4.0% | ≥4.0% | ≥4.0% |
Other specifications available for smooth type filled epoxy-coated 1x7 PC STRAND.
Specifications in accordance with JB/T737-2009, JG/T387-2012
Other types of FILLED EPOXY-COATED 1X7 PC STRAND in my factory

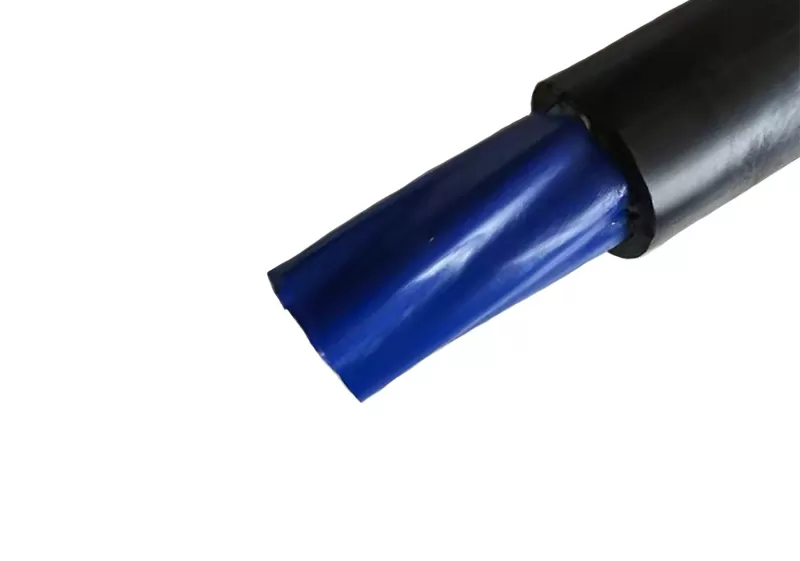

Type 2: Smooth type FILLED EPOXY-COATED 1X7 PC STRAND + Greased + HDPE sheathing

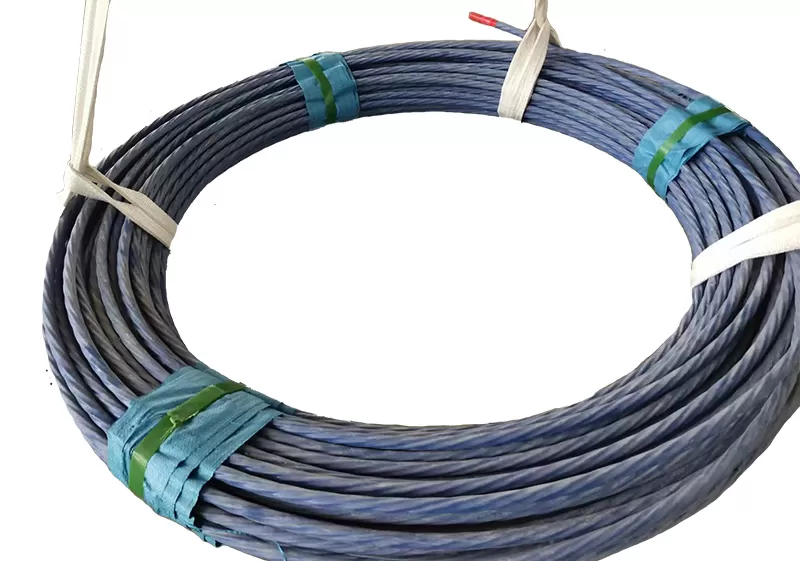

Type 3: FILLED EPOXY-COATED 1X7 PC STRAND with embedded sand on the surface
Type 4: Embedded sand filled epoxy-coated 1X7 PC STRAND + Greased + HDPE Sheathing
