Prestressed Material
Prestressed PC (prestressed concrete) steel wire is a type of high-strength steel wire specifically designed for use in prestressed concrete structures. It is commonly used in applications such as bridges, buildings, railway sleepers, and other infrastructure projects. The diameter and intensity (tensile strength) of prestressed PC steel wire can vary depending on the specific project requirements and engineering specifications.
ADVANTAGES
The primary purpose of prestressed concrete steel wire is to introduce compressive forces into concrete structures to counteract the tensile stresses that the structure will experience during its service life.
This is achieved through a process called prestressing. Prestressed concrete steel wire is used in a wide range of construction applications, including the construction of bridges, buildings, parking garages, dams, and more.
It is commonly used in precast concrete elements like beams, girders, and piles, as well as in cast-in-place concrete structures.
Prestressed Concrete Beams:
Used in bridges, buildings, and other structures to increase span lengths and load-carrying capacity.
Precast Concrete Elements:
Includes railway sleepers, poles, and pipes where prestressed wires provide additional strength.
Post-Tensioned Structures:
Used in situ concrete elements where wires are tensioned after the concrete has cured, such as in slabs and large-span structures.
USE
Prestressed concrete wire is commonly used in the construction of bridges, high-rise buildings, parking structures, and other large-scale infrastructure projects. It allows for the construction of longer and more slender members, reduces the number of support columns needed, and improves overall structural performance.
The process of prestressing involves stretching the wire to a predetermined tension using specialized equipment. Once the wire is tensioned, it is anchored to the surrounding concrete, transferring the compressive forces from the wire to the concrete structure. This compression helps to counterbalance the tensile forces that the structure will experience during its service life, enhancing its load-carrying capacity and durability.
SPECIFICATIONS
Type | Nominal Diameter, mm | Tensile Strength, Mpa | Standard |

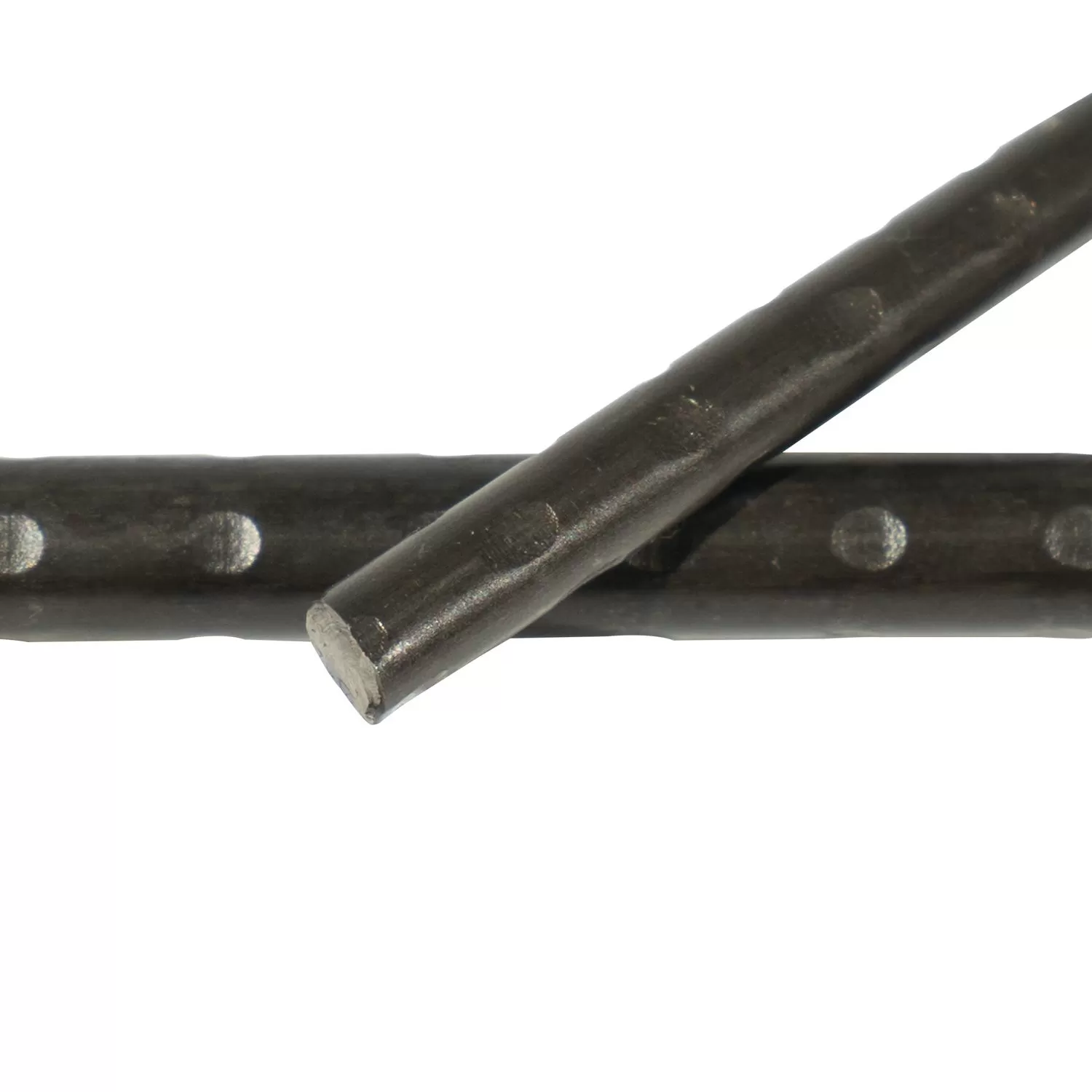

Indented PC Wire | 9.4mm | 1570Mpa | GB/T5223 |
PACKAGE
We support customized packaging.
