Precision Rolled Threaded Steel

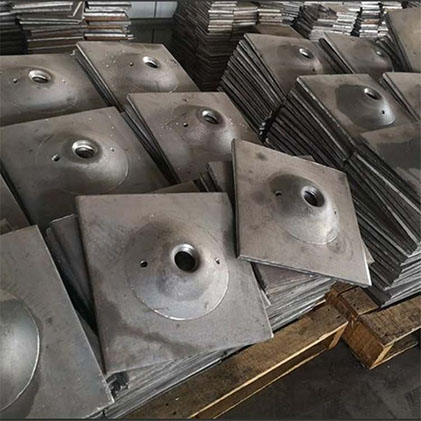

Finished-rolled threaded backing plate, also known as finished rolled threaded steel plate, are an important part of the finished rolled threaded steel accessories anchor. They are used together with finished rolled nuts and are the most used part in the project. Finished-rolled threaded backing plate are divided into flat plate, conical plate and spherical plate. Flat plate are often used for fixed ends, and conical plate are often used for tensioning ends. The size of finished-rolled threaded backing plate can also be processed according to the requirements of relevant construction. Finished-rolled threaded backing plates are shown in the figure below:

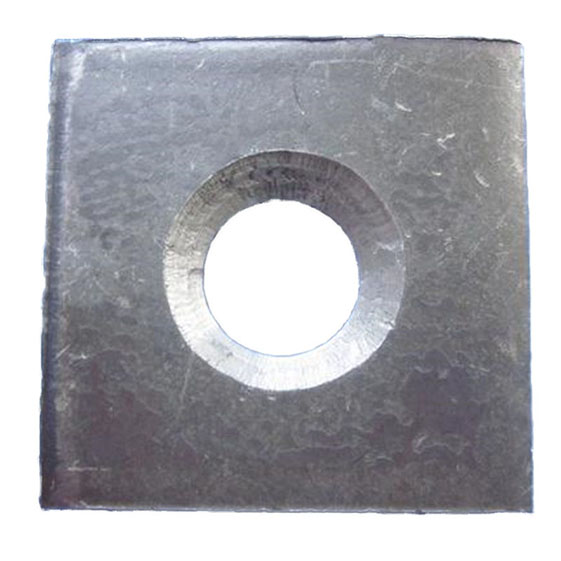

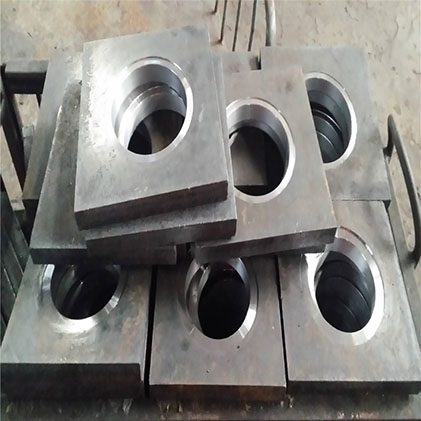

flat plate, conical plate, spherical plate
ADVANTAGES
The finished-rolled threaded backing plate produced by our company are of high quality and are widely used in projects such as roads and bridges, municipal administration, high-rise buildings, power station construction, rock and soil anchoring, and deep foundation pit support.
USE
The finished-rolled threaded backing plate produced by our company are of high quality and are widely used in projects such as roads and bridges, municipal administration, high-rise buildings, power station construction, rock and soil anchoring, and deep foundation pit support.
SPECIFICATIONS
Finished-rolled threaded backing plate, material: q235.
Commonly used plate sizes are 120*120*20mm, 120*120*22mm, 100*100*25, 100*100*22 mm, 100*100*20 mm, 130*130*25 mm, 130*130*22 mm, 130*130*20 mm, 140*140*24mm.
Our company can process according to the requirements of related projects.
Product Name | Specifications | L/mm | d/mm | t/mm | Materials | Weight/kg |
Fixed end nut plate | Φ20 | 100 | 24 | 10 | Q235 | 0.785 |
Fixed end nut plate | Φ25 | 120 | 32 | 20 | Q235 | 2 |
Fixed end nut plate | Φ32 | 140 | 40 | 20 | Q235 | 2.66 |
Fixed end nut plate | Φ32 | 140 | 40 | 25 | Q235 | 3.36 |
Fixed end nut plate | Φ32 | 120 | 40 | 25 | Q235 | 2.4 |
Fixed end nut plate | Φ36 | 140 | 43 | 25 | Q235 | 3.3 |
Fixed end nut plate | Φ36 | 150 | 43 | 30 | Q235 | 5.1 |
Fixed end nut plate | Φ40 | 130 | 25 | 25 | Q235 | 3.1 |
Fixed end nut plate | Φ40 | 140 | 25 | 25 | Q235 | 3.3 |
PACKAGE
We support customerization packaging.
