Prestressed Material

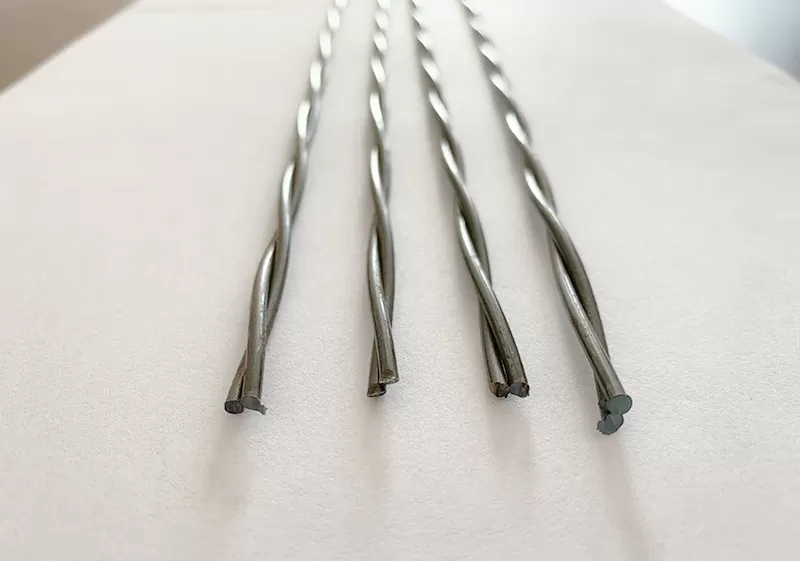

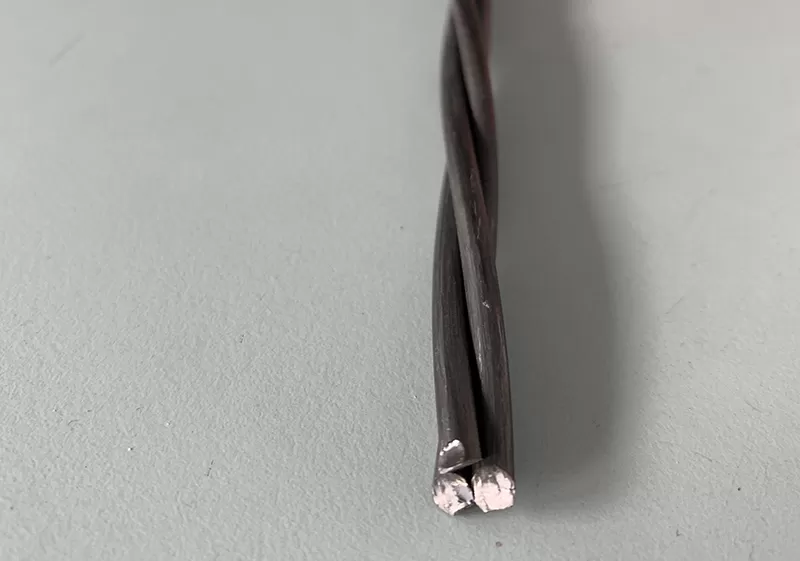

Y1960S3 steel strand is 3-wire strand with tensile strength above 1960MPa
We could provide as per standards EN10138 ,BS5896, GB/T5224.
ADVANTAGES
-Primary advantages
Y1960S3 steel strand is with higher tensile strength than normal tensile strength 1860MPa
-Why should I buy this 1x3 PC Strand ?
We have full range of specifications available , package also can be customized.
-What makes this product different to other factory's Y1960S3 steel strand?
Except a more than 1960Mpa tensile strength , the elongation rate is good,
Relaxation is very low.
And lay distance could be as per clients’ requirement.
USE
-Where can our Y1960S3 steel strand be used?
Pretensioned and posttensioned prestressed concrete construction.
Concrete products manufacture, such as concrete railway sleeper , precast beam , concrete pole / concrete colum
SPECIFICATIONS
| Structure | Standard | Nominal diameter | Wire Diameter | Tolerance on Strand Diameter | Nominal Area of Section | Weight of strand | Tensile Strength, Rm | Minimum Breaking load,Fm | 0,2% proof force e, Fp0.2 | 0,1% proof force , Fp0.1 | Minimum Load at 1 % Extension, Fp1.0 | Elongation Lo=500mm, Agt | Curvative of strand | Lay Length |
| mm | mm | mm | (mm2) | (kg/1000m) | (N/mm2) | KN | KN | % | mm | mm | ||||
| 1X2 | GB/T5224:2014 | 5.00 | 2.50 | +0.15,-0.05 | 9.82 | 77.1 | 1960 | 19.2 | 17.3 | 3.5 | 25mm | (12-16)d | ||
| 1X2 | GB/T5224:2014 | 5.80 | 2.90 | +0.15,-0.05 | 13.20 | 104.0 | 1960 | 25.9 | 23.3 | 3.5 | 25mm | (12-16)d | ||
| 1X2 | GB/T5224:2014 | 8.00 | 4.00 | +0.25,-0.10 | 25.10 | 197.0 | 1960 | 49.2 | 44.3 | 3.5 | 25mm | (12-16)d | ||
| 1X2 | GB/T5224:2014 | 10.00 | 5.00 | +0.25,-0.10 | 39.30 | 309.0 | 1960 | 77.0 | 69.3 | 3.5 | 25mm | (12-16)d | ||
| 1X3 | GB/T5224:2014 | 6.20 | 2.90 | +0.15,-0.05 | 19.80 | 155.0 | 1960 | 38.8 | 34.9 | 3.5 | 25mm | (12-16)d | ||
| 1X3 | GB/T5224:2014 | 6.50 | 3.00 | +0.15,-0.05 | 21.20 | 166.0 | 1960 | 41.6 | 37.4 | 3.5 | 25mm | (12-16)d | ||
| 1X3 | GB/T5224:2014 | 8.60 | 4.00 | +0.20.-0.10 | 37.70 | 296.0 | 1960 | 73,9 | 66.5 | 3.5 | 25mm | (12-16)d | ||
| 1X3 | GB/T5224:2014 | 10.80 | 5.00 | +0.20.-0.10 | 58.90 | 462.0 | 1960 | 115.0 | 104.0 | 3.5 | 25mm | (12-16)d | ||
| 1X3 | GB/T5224:2014 | 12. 90 | 6.00 | +0.20.-0.10 | 84.80 | 666.0 | 1960 | 166.0 | 149.0 | 3.5 | 25mm | (12-16)d | ||
| 1X3 | pr EN10138 | 4.8 | 2.25 | 12.00 | 93.7 | 1960 | 23.5 | 20.9 | 3.5 | 25mm | (14-22)d | |||
| 1X3 | pr EN10138 | 5.2 | 2.40 | 13.60 | 106.2 | 1960 | 26.7 | 23.8 | 3.5 | 25mm | (14-22)d | |||
| 1X3 | pr EN10138 | 6.5 | 3.00 | 21.20 | 165.5 | 1960 | 41.6 | 37.0 | 3.5 | 25mm | (14-22)d | |||
| 1X3 | pr EN10138 | 6.85 | 3.25 | 23.60 | 184.3 | 1960 | 46.3 | 41.2 | 3.5 | 25mm | (14-22)d | |||
| 1X3 | pr EN10138 | 5.2 | 2.40 | 13.60 | 106.2 | 2060 | 28.0 | 24.9 | 3.5 | 25mm | (14-22)d | |||
| 1X3 | pr EN10138 | 5.2 | 2.40 | 13.60 | 106.2 | 2160 | 29.4 | 26.2 | 3.5 | 25mm | (14-22)d |

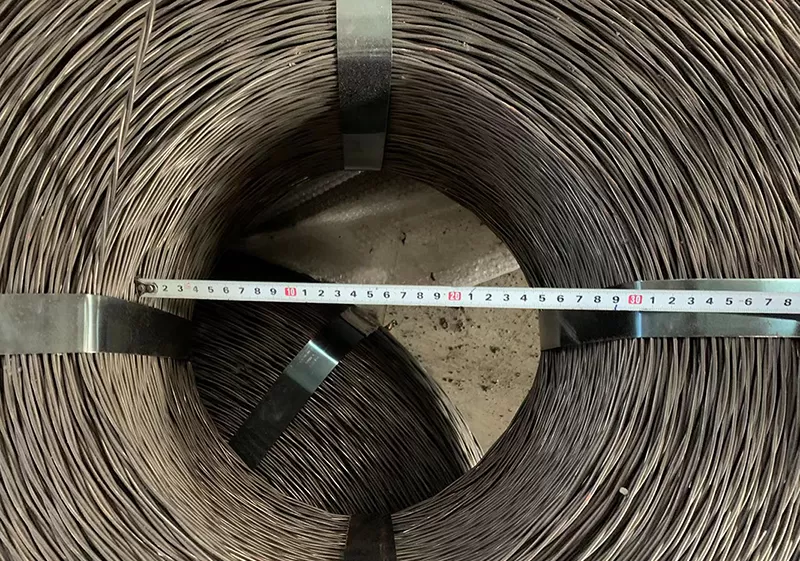

PACKAGE
As per clients’ requirements
