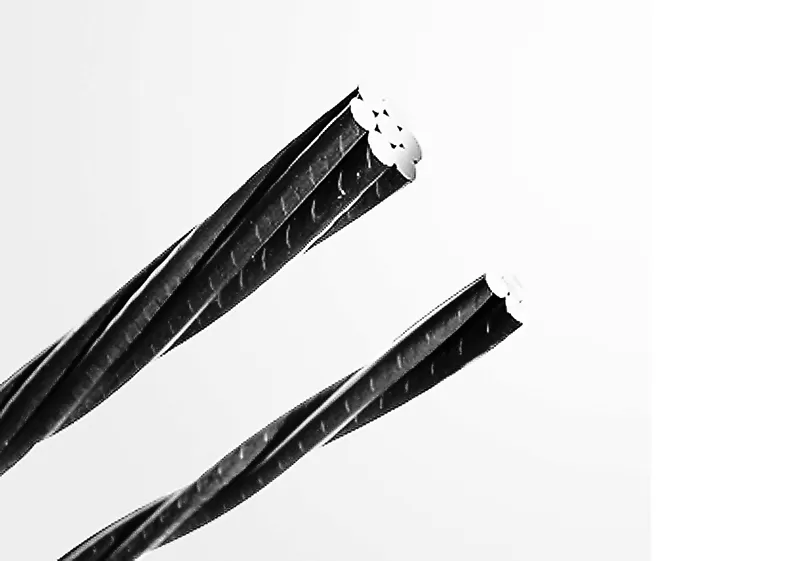

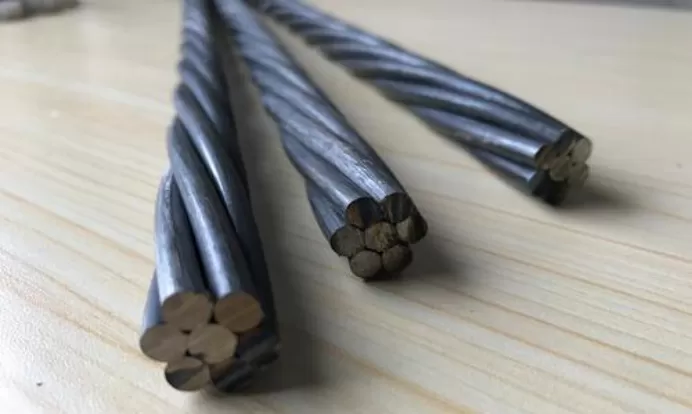

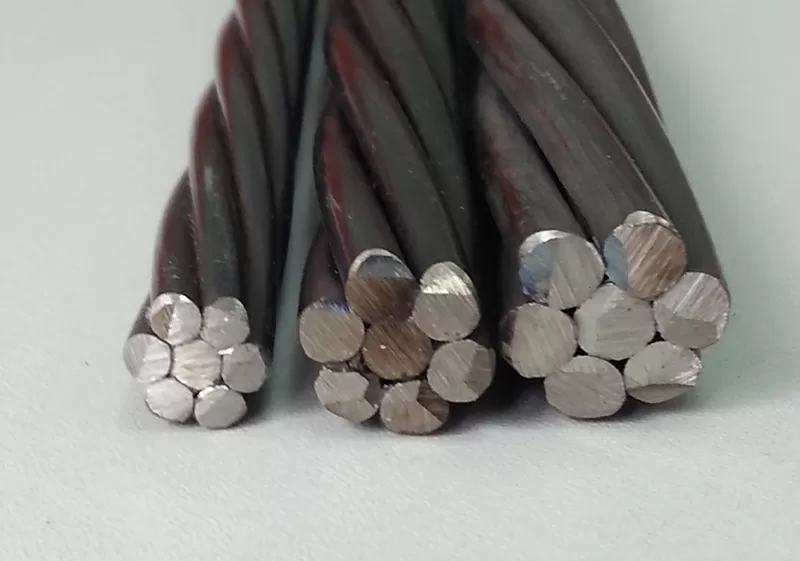

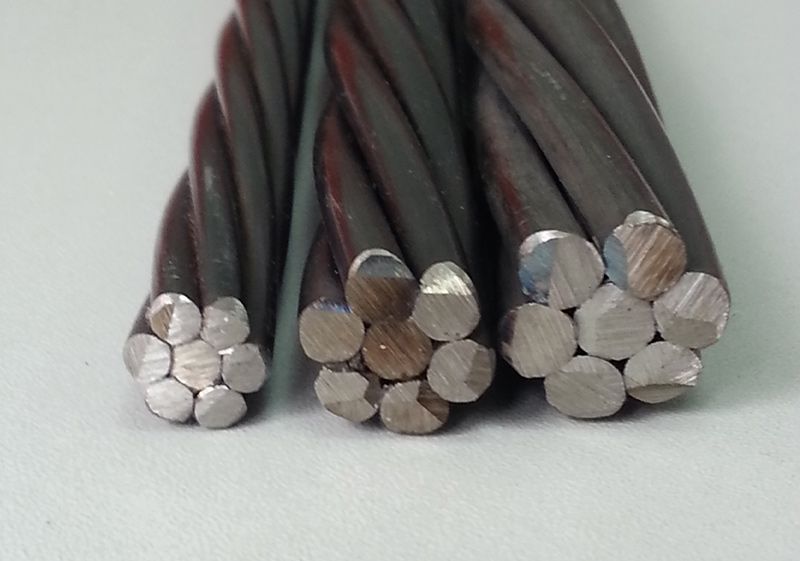

9.53mm Pc Strand

9.53mm PC steel strand - it is often used in places where the strength requirements of steel strands are not particularly high, but more flexible arrangements are needed. For example, in some decorative steel structure modeling, 9.53mm steel strand can be used as a pull line, which can play a certain fixed role, and because of its small diameter will not affect the overall beauty. It may also be used in some small agricultural facilities or simple building structures.

Inquire Now

ADVANTAGES

9.53mm steel strand is relatively small diameter. It is often used in places where the strength requirements of steel strands are not particularly high, but more flexible arrangements are needed. For example, in some decorative steel structure modeling, 9.53mm steel strand can be used as a pull line, which can play a certain fixed role, and because of its small diameter will not affect the overall beauty. It may also be used in some small agricultural facilities or simple building structures.

Smaller Diameter: Compared to thicker steel strands, 9.53mm PC Strand offers greater flexibility, making it easier to arrange and install, and suitable for applications requiring bending and adjustment.

Moderate Strength: This type of strand offers sufficient strength for applications with less demanding load-bearing requirements, without excessive material waste and resulting in a lower price.

Aesthetically Pleasing: 9.53mm PC Strand generally does not detract from the overall appearance of the structure, making it suitable for use as tension wire in decorative steel structures, maintaining a simple and aesthetically pleasing design.

High Cost-Effective: 9.53mm PC Strand offers a lower cost while meeting basic requirements, especially when used on a large scale, offering a significant cost-effectiveness advantage.

USE

Small Agricultural Structures: In simple agricultural structures like greenhouses and fences, 9.53mm PC Strand can be used as a support material, providing the necessary tension while reducing costs.

Lightweight Building Structures: Suitable for lightweight structures or simple buildings that don't need to bear heavy loads, such as small sheds and temporary structures.

Decorative Steel Structures: In modern buildings and decorative structures, 9.53mm PC Strand is used for tensioning and fixing without affecting the overall appearance, making it particularly suitable for designs requiring high visual aesthetics.

Tensioning Applications: It can be used as a support and fixing device in applications where tension needs to be adjusted or maintained, such as billboards and power line supports.

SPECIFICATIONS

1x7 PC Strand : ASTM A416

Grade

Nominal diameter

Tolerance on Diameter

Nominal Area of Section

Weight of strand

Tensile Strength

Minimum Breaking load

Minimum load at 1% Extension

Rp0.1%

Elongation Lo=610mm

Curvative of strand

Lay Length

The Relaxation at 1000h (initial load to 70% of nominal max load ) (r/%) Not more than

(mm)

(in.)

(mm)

(mm²)

(in.²)

(kg/ 1000m)

(lb/ 1000ft)

(N/mm²)

(KN)

(%)

270
(1860)

9.53

3/8

+0.65,-0.15

54.80

0.085

432

290

1860

102.30

92.10

N/A

3.5

Not Specified

(12-16)d

2.5

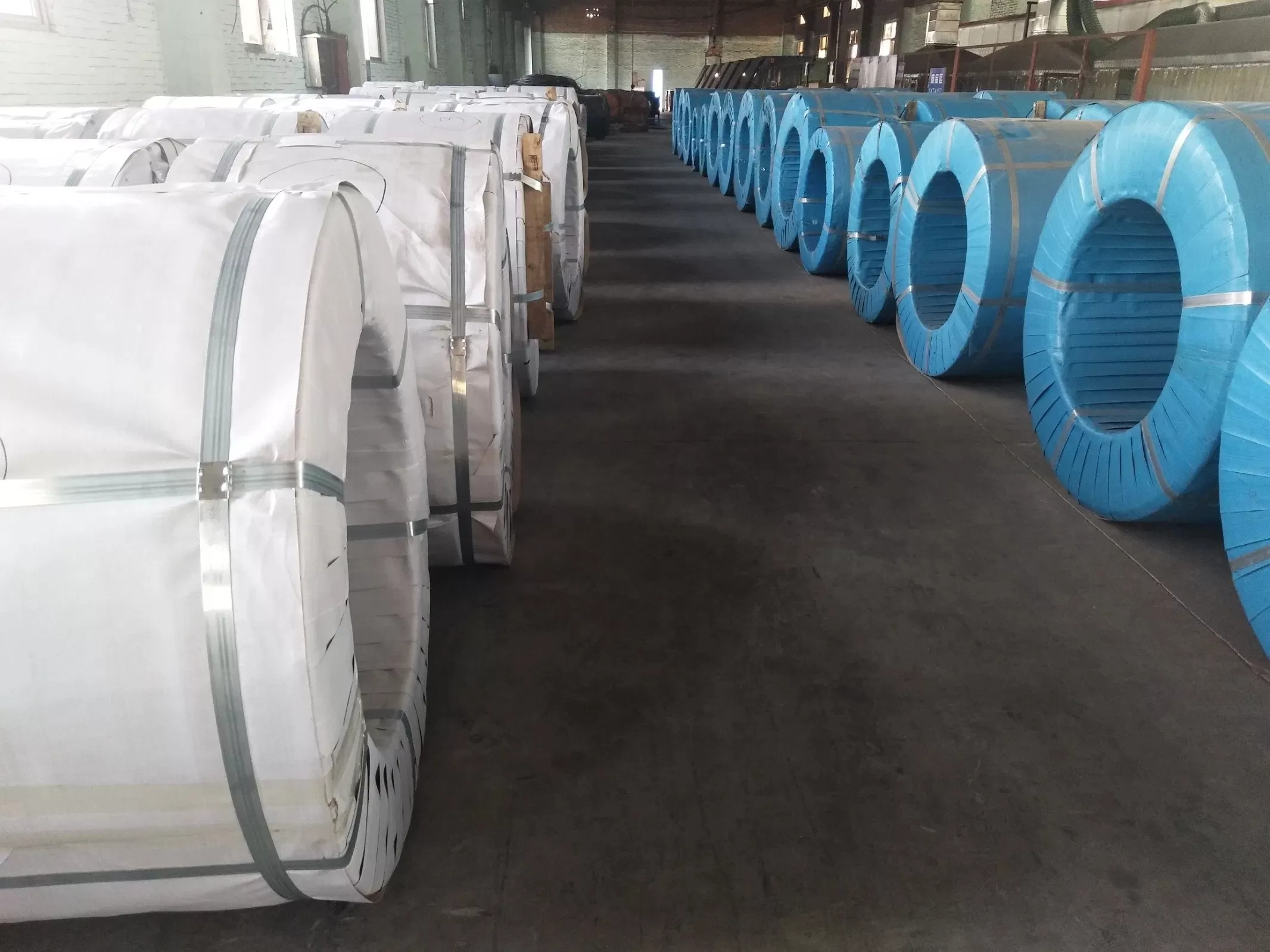

PACKAGE

PACKAGES:

1x7 PC Strand packages could be as per clients’ requirement.

Delivery :

Within 30 days after the prepayment .
