Gt35 Steel-Bonded Carbide

GT35 is a steel-bonded carbide with CrMo low alloy steel as the matrix (binder phase) and TiC particles as the hard phase (mass fraction 35%, hardness HV3200, second only to diamond). It is characterized by high hardness and high wear resistance, but poor temperature resistance (recommended operating temperature ≤300℃) and corrosion resistance. It is mainly used for cold processing molds, such as cold heading, cold drawing, cold shearing, cold extrusion, cold pressing molds and refractory molds.

Titanium Carbide Rod

The titanium carbide cermet rod (TiC rod) belongs to the steel-bonded cemented carbide, which is a kind of compound material based on the steel as the binder phase and used the refractory metal carbide (mainly the titanium carbide and the tungsten carbide) as the hard phase. The TiC rod is the high-hardness and high-strength titanium-based alloy composite material, known for their extreme hardness, high melting point, and excellent wear resistance. These rods can be used in various industrial applications, particularly where high durability and resistance to wear are required, such as for crushing hammer, etc.

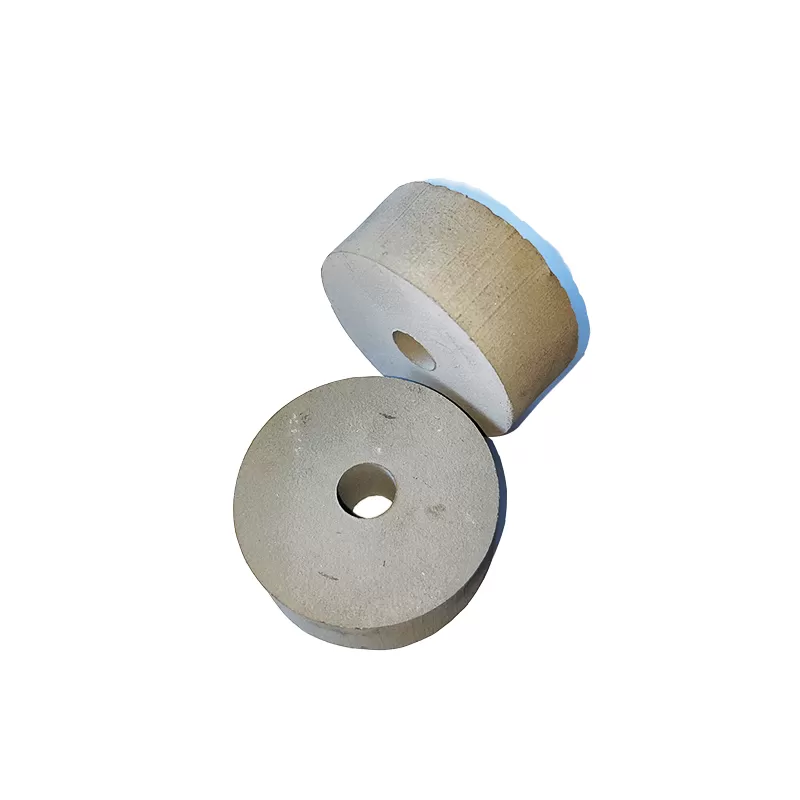

Titanium Carbide Guide Roller, Titanium Carbide Guide Wheel

Carbide guide rollers play an important role in precision machining, wire making and automation industries due to their high hardness, wear resistance, corrosion resistance and impact resistance.

In the wire manufacturing industry, carbide rollers are used for drawing steel wire, copper wire and stainless steel wire; for high-speed wire rolling production lines; for high-temperature wire conveying. In CNC（Computer Numerical Control）machine tools and precision machining industries, carbide rollers are used in wire cutting machines to ensure the good performance of molybdenum wires; for grinders to process bearings and gears with high precision; and for the transmission system of optical fiber or CO2 laser equipment to ensure the stability of processing.

Inquire Now

ADVANTAGES

Cermet (steel-bonded cemented carbide) is a composite material produced by powder metallurgy sintering and forging with steel as the binder phase and carbide (mainly titanium carbide and tungsten carbide) as the hard phase.

It has the following characteristics: good process performance，machinability and heat treatability. In the annealed state, ordinary cutting equipment and tools can be used to carry out mechanical processing such as turning, milling, planing, grinding, and drilling. It can also be forged and welded.

Compared with cemented carbide, it has lower cost and wider application range. Good physical and mechanical properties. Steel-bonded cemented carbide has high hardness in the hardened state. Because it contains a large amount of dispersed high-hardness hard phase, its wear resistance can be close to that of high-cobalt cemented carbide.

Compared with high-alloy die steel, it has higher elastic modulus, wear resistance, compressive strength and bending strength.

Compared with cemented carbide, it has better toughness. It has good self-lubrication, low friction coefficient and excellent chemical stability.

USE

Application:

Due to its high hardness, high wear resistance and high rigidity, it is suitable for making high-efficiency and long-life tools, dies, gauges, fixtures, jigs and wear-resistant parts.

In addition, its good machining performance and heat treatability (performance can be adjusted by quenching and tempering) make it have significant advantages in large molds, complex structure molds, block molds (convenient for replacing damaged modules) and refractory molds.

SPECIFICATIONS

GT35 Titanium Carbide Rod/Bar

Grade	Hard Phase	Binder Phase	Density	Hardness		TRS	Impact Toughness
			g/cm³	Annealing	Hardening	Mpa	J/cm²
				HRC	HRA
GT35	TiC	Alloy steel	6.40-6.60	≤48	≥86	≥1400	≥ 3.5

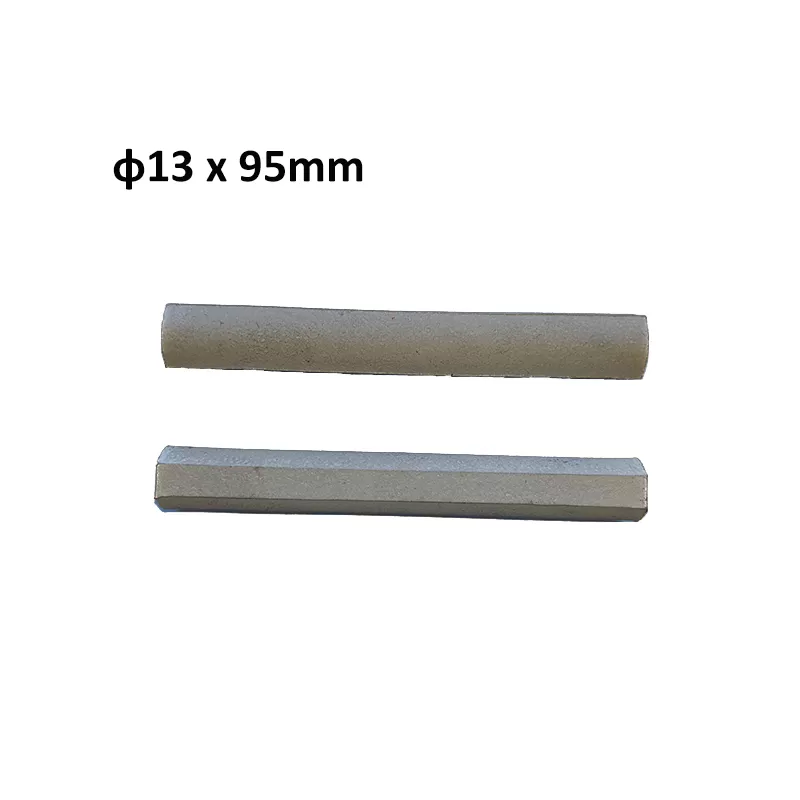

1. Titanium Carbide Rod/Bar : φ13*95mm,

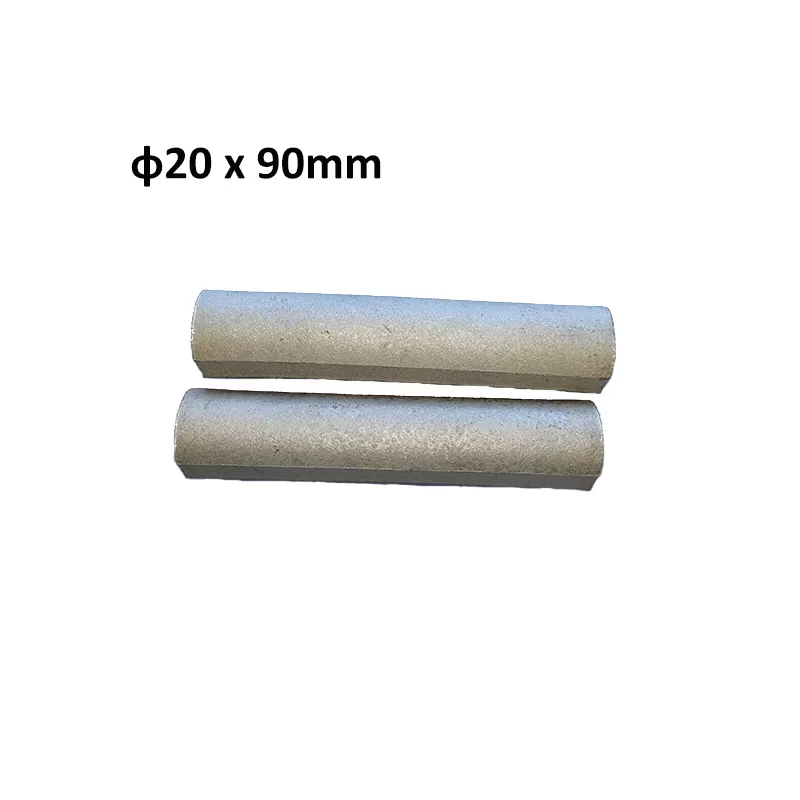

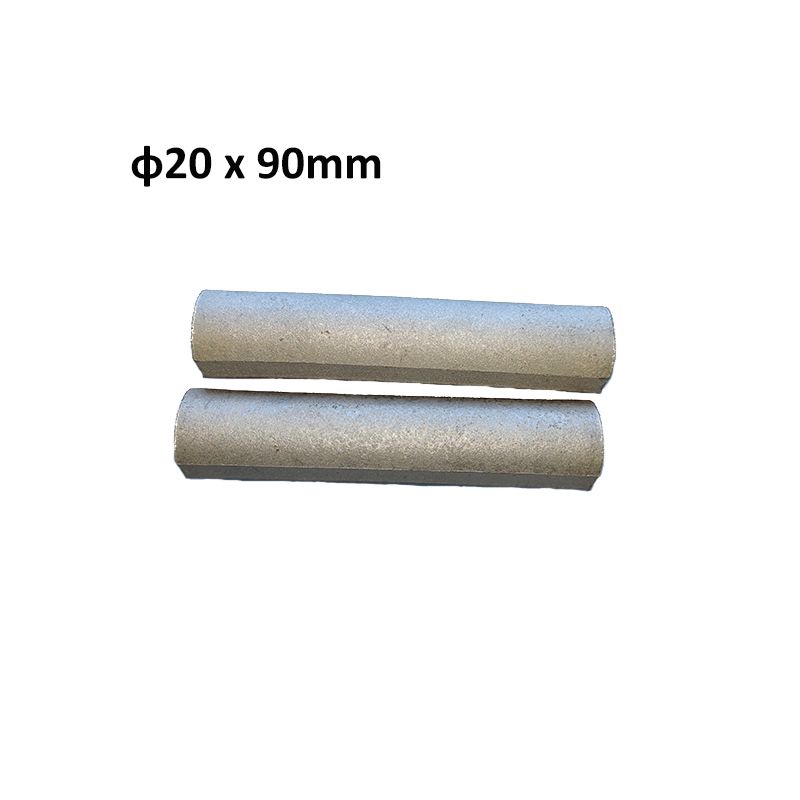

2. Titanium Carbide Rod/Bar : φ20*90mm.

GT35 Titanium Carbide Guide Rollers

Size	Material	Application
Customized Guide rollers’ size varies according to the different wire rods. The main dimensions and structures are: outer diameter and thickness, groove type and bearing hole	GT35	Guide Roller (also known as guide wheel) is an indispensable part of wire rod in the rolling process of steel rolling plant. It requires high hardness, good wear resistance (matching the service life with high-quality bearings), good thermal conductivity, and a certain degree of red hardness, especially for high-speed wire rolling (the rolling speed is 80-120m/s).

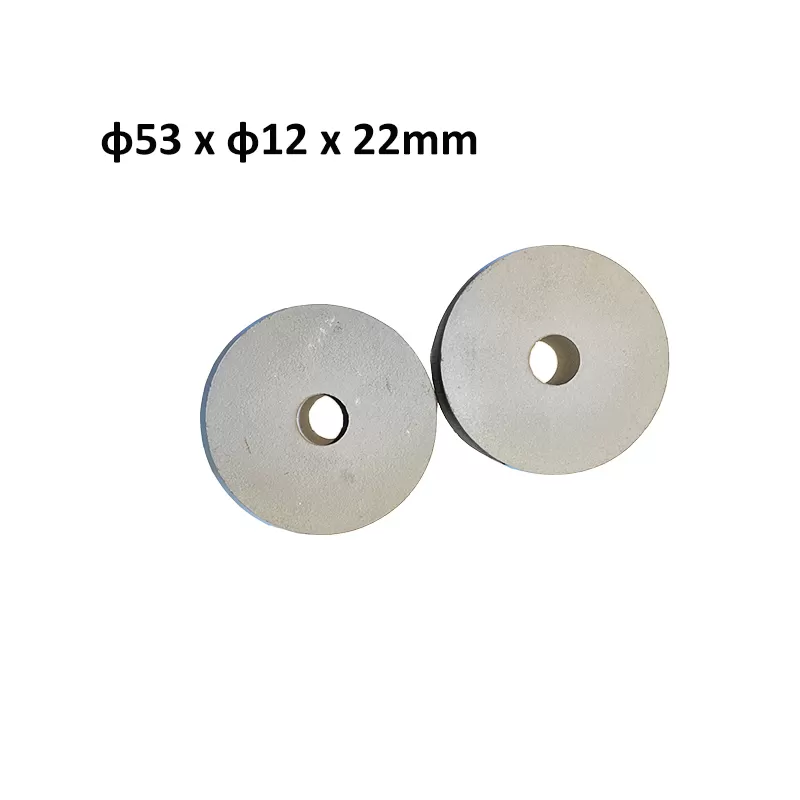

1. Titanium Carbide Guide Rollers: φ53*φ12*22 (Inner Diameter x Outer Diameter x Height),

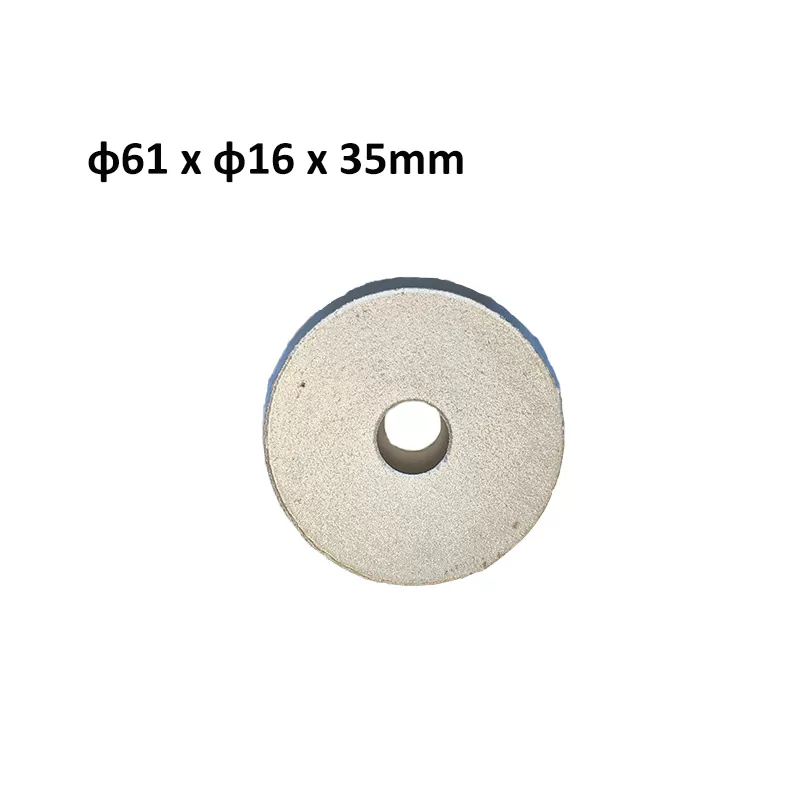

2. Titanium Carbide Guide Rollers: φ61*φ16*35 (Inner Diameter x Outer Diameter x Height).

PACKAGE

We support customized packaging.
